Pallet Truck
AGV Universal Wheel
AGV Universal Wheel
Material
Wheel Diameter
Payload Capacity
Specific






| Model | Tread Material | Hub Material | Wheel Dia. (mm) | Wheel Width (mm) | Total Height (mm) | Radius (mm) | Top Plate (mm) | Bolt Hole Centers (mm) | Attaching Bolt Size (mm) | Max. Payload (kg) |
| AB-UW-D25-C30 | PU 55D | PU 73A | 25 | 15 | 37 | 16 | 30×38 | 29×21 | 4 | 30 |
| AB-UW-D57-C100 | PU 93A | Aluminum | 57 | 14×2 | 80 | 22 | 67×49 | 52×35 | 8 | 100 |
| AB-UW-D50-C150 | PU 93A | Aluminum | 50 | 20×2 | 82 | 20 | 111×80 | 87/78×60 | 9 | 150 |
| AB-UW-D55-C200 | PU 93A | Aluminum | 55 | 20×2 | 79 | 20 | 84×84 | 64/59×64/59 | 9 | 200 |
| AB-UW-D65-C200 | PU 93A | Aluminum | 65 | 24×2 | 87 | 20 | 111×80 | 87/78×60 | 9 | 200 |
| AB-UW-D76S-C150 | PU 73A | Aluminum | 76 | 24×2 | 107 | 20 | 104×82 | 87/78×60 | 9 | 150 |
| AB-UW-D76S-C200 | PU 93A | Aluminum | 76 | 24×2 | 107 | 20 | 104×82 | 87/78×60 | 9 | 200 |
| AB-UW-D76-C200 | PU 73A | Aluminum | 76 | 24×2 | 107 | 20 | 110×85 | 86×60 | 9 | 200 |
| AB-UW-D76-C150 | PU 73A | Aluminum | 76 | 24×2 | 107 | 20 | 110×85 | 86×60 | 9 | 150 |
| AB-UW-D76-C300 | PU 93A | Aluminum | 76 | 30×2 | 110 | 22 | 116×110 | 92/76×76/67 | 11 | 300 |
| AB-UW-D80-C500 | Steel 45# | 80 | 35×2 | 110 | 21 | 116×100 | 78×78 | 9 | 500 | |
| AB-UW-D100-C600 | PU 55D | Iron | 100 | 35×2 | 133 | 21 | 116×100 | 78×78 | 9 | 600 |
| AB-UW-D150-C1000 | PU 55D | Iron | 150 | 40×2 | 191 | 45 | 159×115 | 133/125×86/62 | 14 | 1000 |
| AB-UW-D200-C1500 | PU 55D | Iron | 200 | 40×2 | 268 | 57 | 185×135 | 155/132×105/85 | 14 | 1500 |

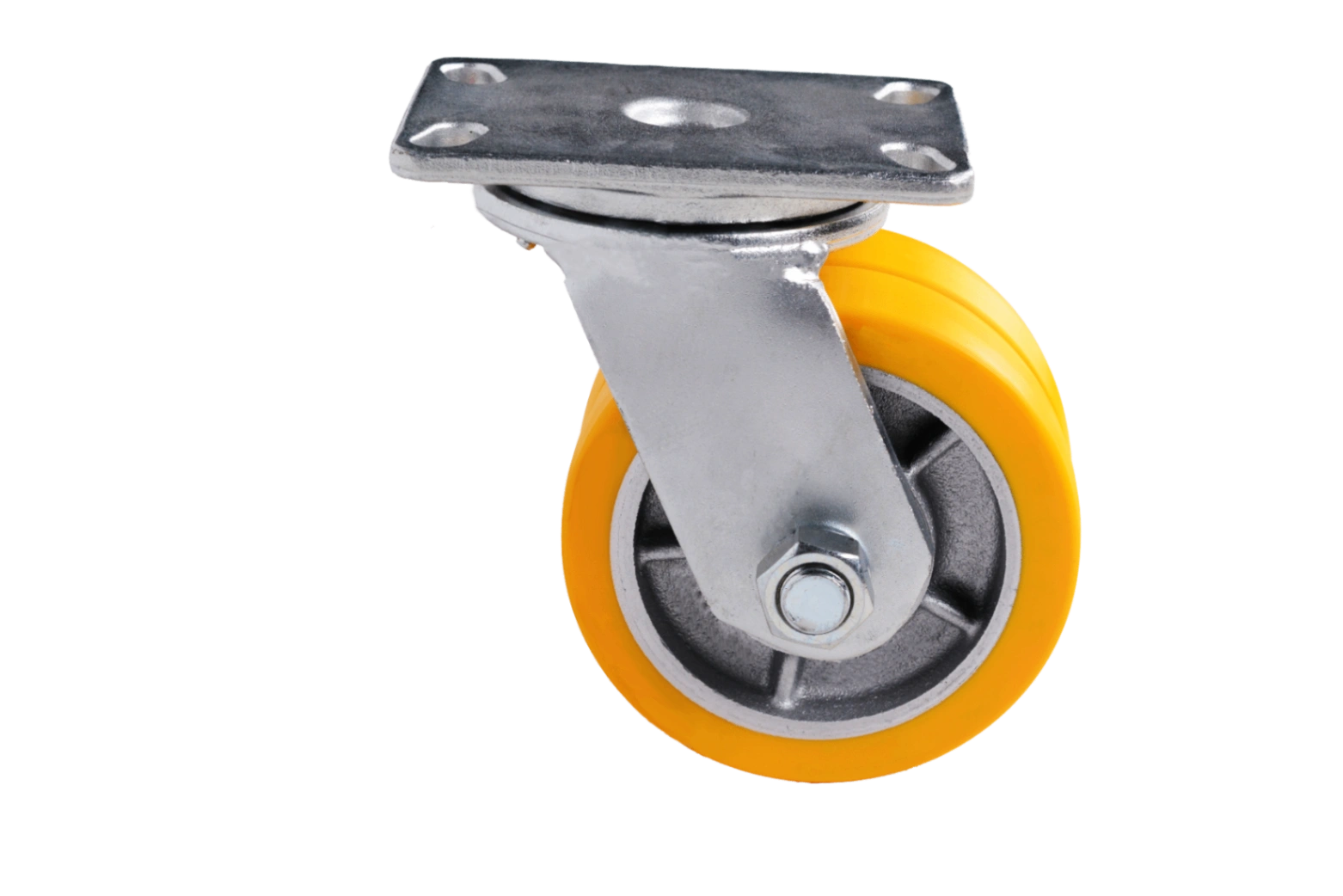

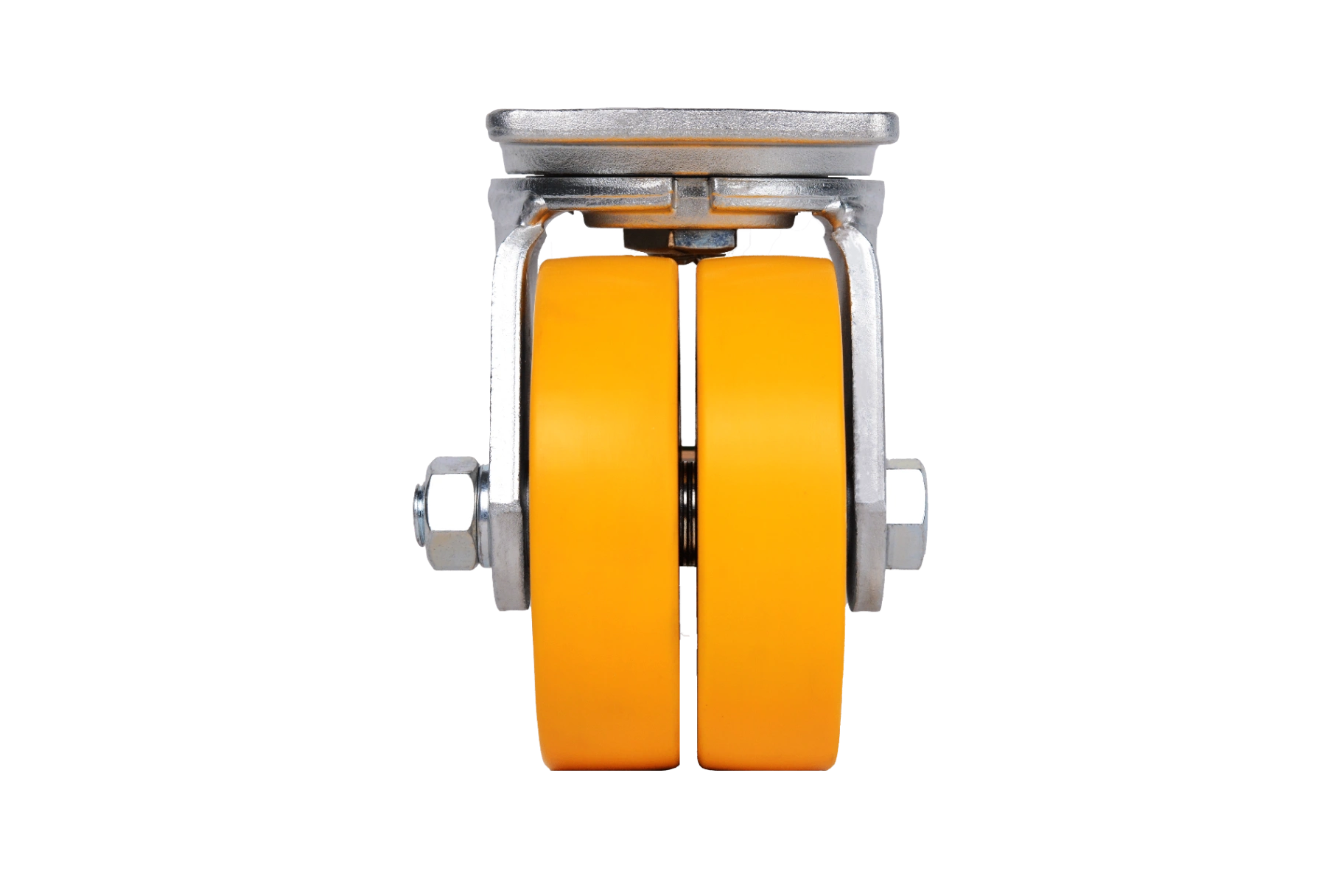

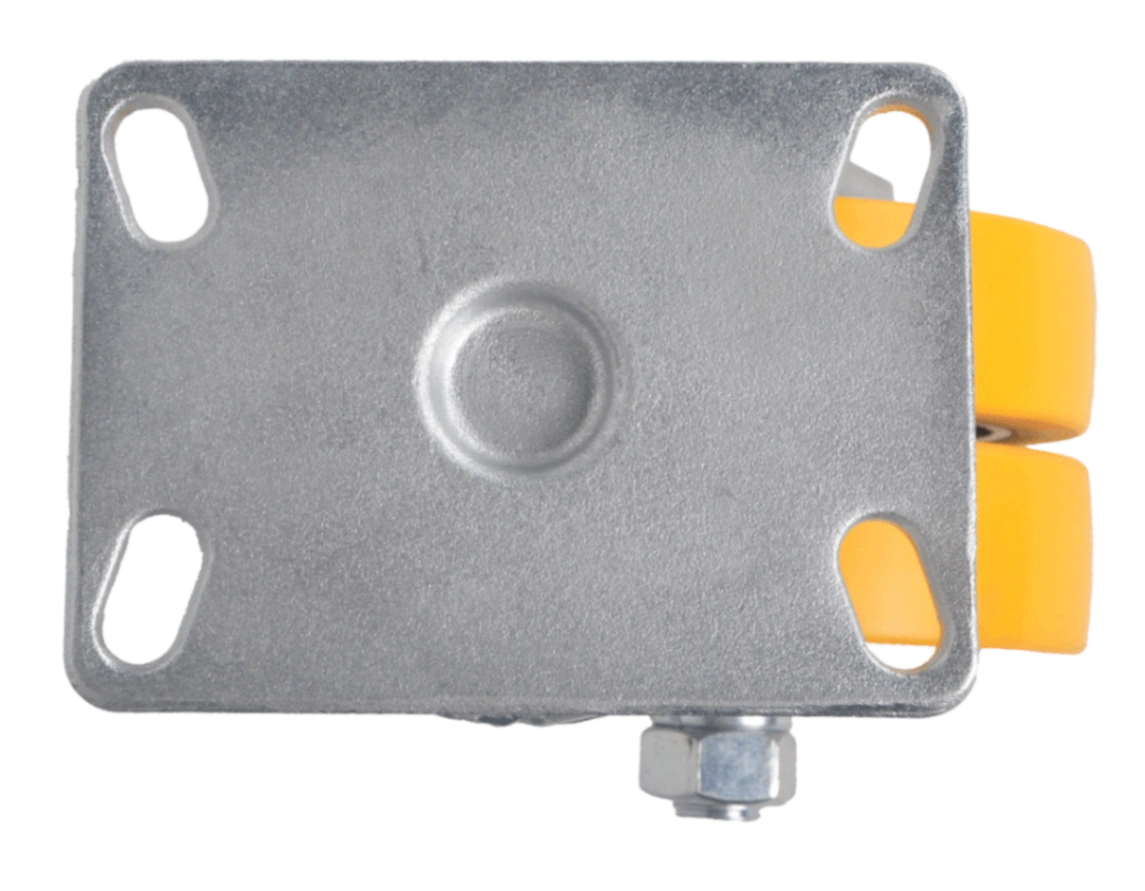

This is a purpose-built industrial component engineered exclusively for automated guided vehicle (AGV) systems, developed by PCOPCO for the AGV industry. It supports reliable load movement and precise maneuverability for AGVs used in industrial material handling workflows.
PCOPCO’s AGV universal wheels feature a polyurethane construction, with a wheel diameter ranging from 25 to 200 mm. Their payload capacity spans 30 to 1500 kg, catering to a wide range of AGV models and load demands.
These AGV-specific wheels are optimized for material handling scenarios including warehouse logistics, auto manufacturing plants and distribution centers. They are compatible with most standard AGV types such as unit load carriers, tuggers and fork-type AGVs.
Unlike standard industrial wheels, PCOPCO’s AGV universal wheels are tailored to the precise maneuverability and load requirements of automated guided vehicles. Their polyurethane build also offers better floor protection and lower operational noise than generic steel or rubber alternatives.
First, confirm your AGV’s required wheel diameter and maximum payload capacity to select the correct model from PCOPCO’s product range. You can also consult their technical support team to verify compatibility with your existing AGV system for seamless integration.
The PCOPCO AGV Universal Wheel is a specialized industrial component built exclusively for automated guided vehicles. It falls under the category of Industrial AGV components, tailored specifically for the AGV industry to support stable material handling operations.
This product offers a wheel diameter range of 25 to 200 mm, with a payload capacity spanning 30 to 1500 kg. It is constructed with polyurethane material, which delivers reliable performance for heavy-duty industrial AGV applications.
This universal wheel is purpose-built for the AGV industry, so it suits a wide range of automated material handling scenarios. Common use cases include factory automated assembly lines, warehouse logistics sorting, and automated storage and retrieval systems.
Unlike generic industrial wheels, the PCOPCO AGV Universal Wheel is engineered to meet the strict operational needs of automated guided vehicle systems. Its polyurethane material offers excellent wear resistance and load stability, making it more suitable for continuous industrial automation work than standard off-the-shelf wheels.
First, confirm your AGV’s required wheel diameter and maximum payload capacity to match the product’s available specs. You can also refer to PCOPCO’s official product guidelines to ensure the wheel is compatible with your specific AGV model before finalizing your order.
The PCOPCO AGV Universal Wheel is a specialized industrial component for automated guided vehicle systems. It serves as the core load-bearing and propulsion part for AGVs across industrial environments. This product is exclusively designed for AGV industry applications per its official categorization.
This PCOPCO AGV Universal Wheel uses polyurethane as its primary material for durability and quiet operation. Its wheel diameter ranges from 25 to 200 mm, with a payload capacity spanning 30 to 1500 kg to fit various AGV models. It is specifically categorized as an AGV industry-specific component.
This PCOPCO AGV Universal Wheel works across a wide range of industrial AGV use cases. Common scenarios include warehouse logistics AGVs, automotive manufacturing workshop transporters and e-commerce sorting AGVs. Its polyurethane construction ensures smooth movement on most standard industrial floor surfaces.
Unlike generic industrial wheels, this PCOPCO model is purpose-built for AGV industry-specific needs. It offers a broader payload range and standardized diameter options to match most mainstream AGV setups. The polyurethane material also provides better wear resistance and low noise performance for automated working environments.
First confirm your AGV's required wheel diameter and payload capacity within the listed product ranges. You can consult PCOPCO's technical team for tailored recommendations based on your existing AGV configuration. Bulk order customers can also access dedicated account support for their procurement needs.
