Home Products Energy Lithium-Ion Battery Modular Battery 24V45AH

Pallet Truck

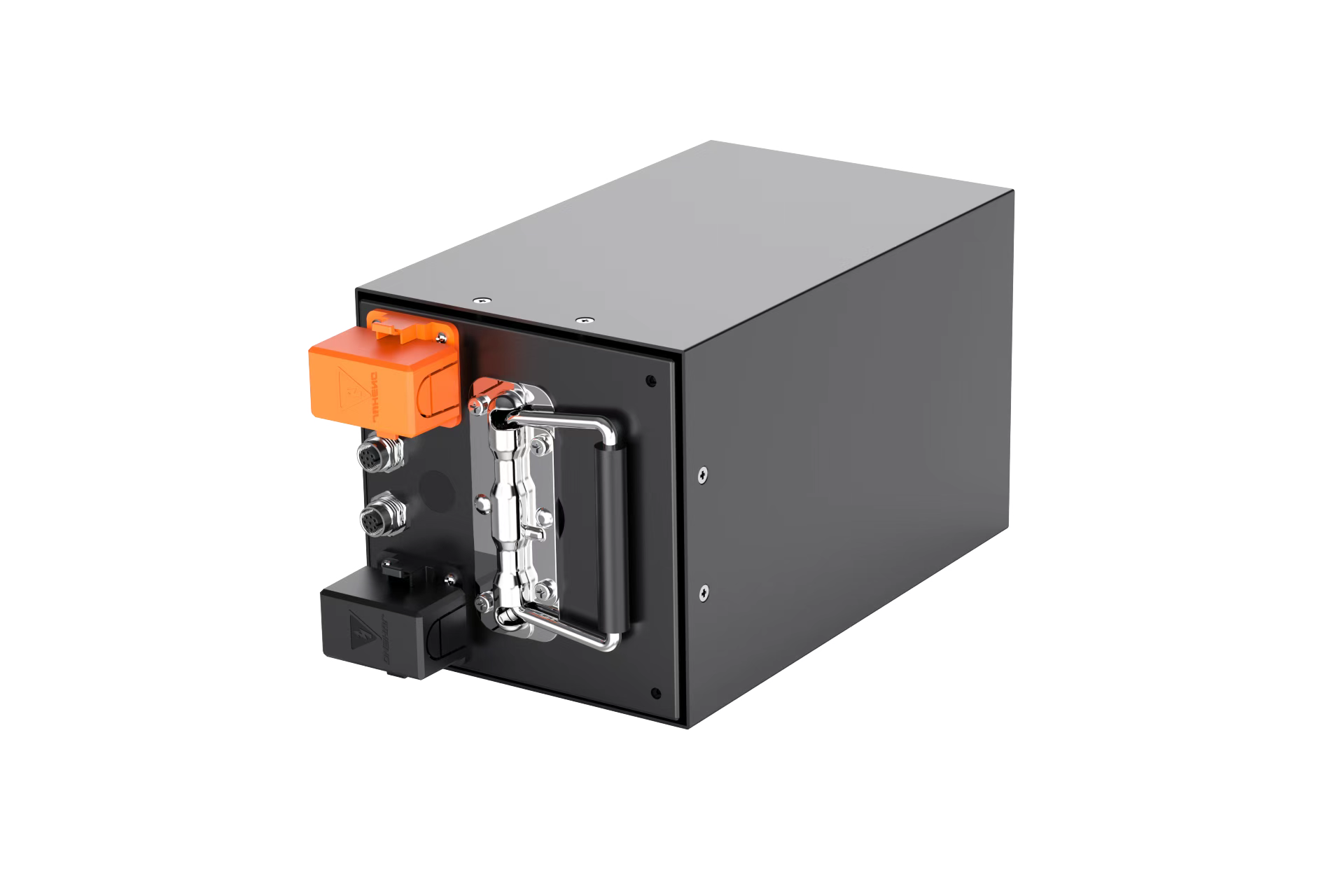

Modular Battery 24V45AH

The modular design allows for flexible configurations, making it easy to scale and replace individual modules without affecting the entire system.

Modular Battery 24V45AH
Modular Battery 24V45AH

Strong Performance

Faster charging/discharging, 2000+ cycles

Enhanced Safety

Thermal stability LFP battery

Scalability & Modularity

Flexible parallel/serial scaling, easily replaceable modules

High Energy Efficiency

90–98% round-trip efficiency

Cost-Effectiveness

Fast modular design, lower TCO through upfront savings

Global Compliance

Certified (UL, CE, FCC, EN13849, UN38.3)


ModelAB-BT-LFP-24V-45AH-MOD
Electrical Parameters
Full Charging(FC) Voltage29.2 V
Charging Cut-off Current2.25 A
Standard Charging Current22.5 A
Max Charging Current40 A
Discharge cut-off voltage (FD)20.8 ± 0.8 V
Standard Discharging Current   22.5 A
Max. Continuous Discharge Current40 A
Max. Discharge Current (<5s)50 A
Essential Parameters
Nominal Voltage24 V
Nominal Capacity45 Ah
Rated Capacity≥90%
Cycle Life2000 cycles ≥70%
Cell materialLithium Iron Phosphate
Max Units in parallel connection5
Max Units in Serial connection2
CertificationUL/CE/FCC/EN13849/UN38.3
CommunicationCANopen
Environmental Parameters
Charge Temperature0–45℃
Discharge Temperature

-20–60℃
Storage Temperature-20–25℃
Humidity60 ± 25% RH
Physical Parameters
Dimensions310 × 272 × 162 mm
Net Weight13.3 kg




Frequently Asked Questions

What exactly is the PCOPCO Modular Battery 24V45AH?

The PCOPCO Modular Battery 24V45AH is a purpose-built lithium-ion phosphate (LFP) battery component for industrial automated guided vehicles (AGVs). It features a modular stackable design that supports flexible capacity scaling for different AGV setups. It also integrates built-in BMS protection to safeguard against overcharging, overheating and other common battery risks.

What are the official specifications and certifications for the PCOPCO Modular Battery 24V45AH?

This PCOPCO battery has a rated output of 24V and 45Ah using LFP chemistry. It supports unrestricted parallel and serial stacking to customize total system capacity. It holds key global certifications including UL, CE, FCC, EN13849 and UN 38.3 for compliance across most international markets.

What industrial applications is the PCOPCO Modular Battery 24V45AH suitable for?

The PCOPCO Modular Battery 24V45AH is primarily designed for a range of industrial AGV use cases, including warehouse material transport, factory assembly line logistics and automated storage and retrieval systems. Its flexible stacking capability allows it to be adapted for both compact mobile robots and heavy-duty, high-power AGV fleets. It delivers stable, consistent power for prolonged daily industrial operations.

How does the PCOPCO Modular Battery 24V45AH stand out against competing industrial AGV batteries?

Compared to standard non-modular industrial AGV batteries, the PCOPCO Modular Battery 24V45AH offers unrestricted parallel and serial stacking for fully customized capacity scaling. It uses LFP chemistry, which boasts a longer cycle life and better thermal stability than many other lithium-ion battery variants. Its comprehensive global certifications also simplify cross-border procurement and compliance for international projects.

What should I consider when purchasing the PCOPCO Modular Battery 24V45AH for my industrial AGV fleet?

When procuring this PCOPCO modular battery, you can leverage its global certifications to ensure compliance with regional import and safety standards in your target markets. The modular design lets you order exactly the capacity you need, reducing excess inventory costs. You can also access official distributor support for bulk pricing, installation guidance and ongoing maintenance assistance.

What is the PCOPCO Modular Battery 24V45AH?

This is a purpose-built lithium-ion battery for industrial AGVs under the PCOPCO brand. It uses LFP (Lithium Iron Phosphate) material with a rated capacity of 24V and 45Ah, delivering stable power for automated guided vehicle operations.

What are the core specifications of the PCOPCO 24V45AH modular AGV battery?

The core specifications of the PCOPCO Modular Battery 24V45AH include 24V voltage, 45Ah LFP battery capacity. It supports unlimited stackable parallel and serial connections for flexible capacity scaling, and is fitted with a built-in BMS for overcharge, overdischarge and short circuit protection.

What industrial applications is the PCOPCO Modular Battery 24V45AH suitable for?

This battery is primarily designed for industrial AGVs, making it ideal for automated logistics warehouses and smart production lines. It can sustain the continuous power needs of long-duration AGV operation shifts.

How does the PCOPCO 24V45AH modular battery stand out from similar AGV batteries?

Compared to competing AGV lithium batteries on the market, the PCOPCO Modular Battery 24V45AH offers unlimited stackable expansion without strict capacity limits. It also holds multiple global certifications including UL, CE, FCC and EN13849, ensuring compliance across most international markets.

What should I know about purchasing the PCOPCO Modular Battery 24V45AH for my factory?

Bulk orders for the PCOPCO Modular Battery 24V45AH are available to support industrial AGV fleet procurement. All products come with complete official certifications such as UN 38.3, meeting cross-border import and safety standards.

What is the PCOPCO Modular 24V45AH Lithium-Ion AGV Battery?

This is a purpose-built industrial power component designed exclusively for automated guided vehicles (AGVs). Manufactured by PCOPCO, it uses LFP lithium-ion chemistry to deliver reliable power for material handling operations. It falls under the category of core industrial AGV power supply solutions.

What are the core technical specifications of the PCOPCO 24V45AH modular AGV battery?

This battery has a nominal voltage of 24V and a capacity of 45Ah with LFP chemistry. It supports unlimited parallel and serial stackable configurations to customize power output for different AGV setups. It also includes a built-in BMS for comprehensive protection and holds UL, CE, FCC, EN13849, and UN 38.3 certifications.

In which industrial AGV scenarios can the PCOPCO 24V45AH modular battery be deployed?

This battery is ideal for a range of automated material handling applications, including warehouse AGVs, factory floor transport carts, and automated storage and retrieval systems. Its modular design allows it to adapt to both small-scale and large-scale industrial setups. PCOPCO’s solution ensures stable power delivery to support 24/7 round-the-clock operations.

How does the PCOPCO 24V45AH modular AGV battery compare to competing products?

Compared to standard non-modular AGV batteries, this PCOPCO unit offers flexible unlimited parallel and serial stacking, enabling custom power configurations for various AGV models. Its built-in BMS and comprehensive global certifications reduce compliance burdens for cross-border industrial projects. The LFP chemistry also provides better thermal stability than many alternative battery types for industrial use.

What key considerations should I keep in mind when procuring the PCOPCO 24V45AH AGV battery?

When sourcing this battery, you can take advantage of its pre-approved global certifications to streamline cross-border import and compliance checks. Its modular design allows for easy scaling as your AGV fleet expands, making it suitable for both small and bulk procurement needs. You can work with authorized PCOPCO distributors for bulk pricing and technical pre-sales support.
