Home Products Vehicle Control IPC AB-MC-IPC-M20-I5

Pallet Truck

AB-MC-IPC-M20-I5

A fanless industrial PC featuring an Intel Core i5 processor, 8 GB DDR4 RAM, 512 GB SSD, and integrated Iris Xe graphics.

AB-MC-IPC-M20-I5
AB-MC-IPC-M20-I5

Rich Integrated Interfaces

With Built-in and configurable DI/DO, CAN, RS-485/232, Audio, USB2.0/3.0, Customers do not need external modules to connect perception, motion and networking components, Clean wiring & Space friendly.

Powerful Compute

The product houses Intel Core I5 processor, 8G DDR4 RAM, 256G SSD, as well as powerful GPU Intel Iris Xe Graphics for machine vision application.

Modular Design

Easy customization under same housing, fast scale-up & scale down, supports multiple chipset, multiple interfaces, Network modules, Storage options etc.

Super-Efficient Heat Dissipation

Through thermal simulation analysis of over 10 CPU power consumption scenarios, With high-precision die-cast aluminum molding and Integrated copper-aluminum, it boasts a compact and robust design, ensuring stable and reliable high-performance computing in confined spaces.

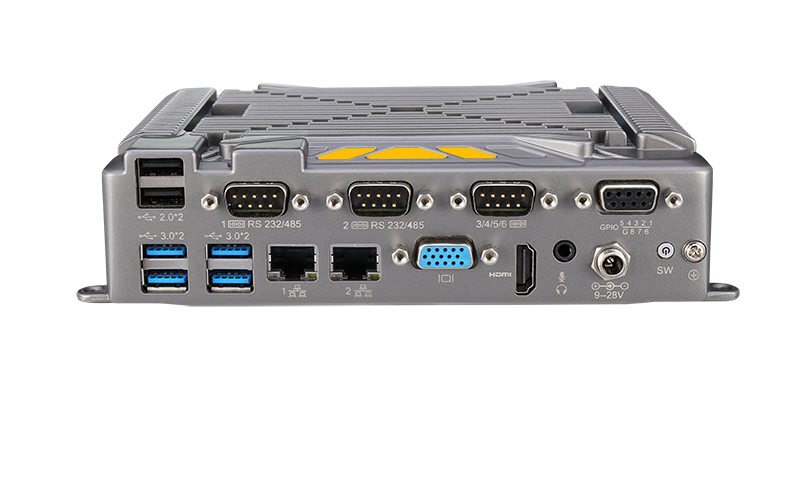

Single-Sided Interface, Modular Installation Design

The product features a streamlined single-sided I/O and flexible mounting options, enabling simpler installation in tight spaces than traditional dual-I/O systems. Ideal for AGVs, robotics, and machine vision, its modular design delivers scalable computing, customizable I/O, and space-efficient solutions.

Cable-Free Design for Enhanced Reliability

The product ensures maximum stability with its cable-free, direct-connect I/O interface. This robust design eliminates vibration, movement, and poor cable connection issues during operation/transport, minimizing environmental impacts to maintain reliable, high-efficiency production.

ModelAB-MC-IPC-M20-I5
Operating SystemLinux Ubuntu (Windows Optional, with separate License)
System PerformanceProcessor: Intel i5 1035G1
Memory: DDR4 3200MHz 8GB
Storage: 512G SSD
GraphicIntel® UHD Graphics
InterfaceNetwork:
LAN1/2: Intel i211 10/100/1000Mbps
LAN1/2/3/4: Intel i210 10/100/1000Mbps
Support EtherCAT agreement and internet wake up.(Optional)
COM: 6 x COM (optional 4 x RS232+2 x RS485;
2 x RS232+4 x RS485)
USB: 4 x USB3.0, 2 x USB2.0
Others: 1 x Mic-in, 1 x Line-out, 1 x HDMI
DI/DO: 8 x DI, 8 x DO
Voltage +12 – 28V DC(Supports Overvoltage and
 Reverse polarity Protection)
Power ConsumptionMaximum power consumption 65W
(i7 1165G7 CPU/8G Memory)
Cooling MethodFanless, Die-cast aluminum integrated heat dissipation
or copper tube heat dissipation (i5 and above)
InstallationEmbeded Mounting/DIN Rail Mounting/Wall Mounting
Dimensions173×52×121mm (length × width × height)
EnvironmentElectromagnetic Compatibility:IEC60068-2-64
Working Environment: -20 – 50℃ (optional SSD),
0 – 40℃ (2.5″ HDD)
Storage Temperature: -30 – 70℃
Vibration: with SSD: 3Grms EN60068-2-27:2009
Random vibration 5-500HZ, half an hour per axis
Net Weight1.2 kg
Backup UPSOptional (2500mAH Li-ion battery, can work continuously for 30 minutes after power off at 25℃ ambient temperature)
Network ModemOptional (Wifi/4G LTE/5G)


Frequently Asked Questions

What is the PCOPCO AB-MC-IPC-M20-I5 industrial AGV component?

This is a dedicated industrial IPC component for automated guided vehicles under the PCOPCO brand. It serves as the core control unit to manage AGV movement, scheduling and peripheral device connections. It meets the strict stability requirements of long-term industrial operation scenarios.

What technical specifications does the PCOPCO AB-MC-IPC-M20-I5 have?

This component is equipped with an Intel 11th Gen Core i5 1135G7 processor running at 2.4GHz, and supports both Windows 10 and Linux operating systems. It offers 1 x VGA and 1 x HDMI display outputs with a maximum resolution of 4096*2304@60Hz, and includes standard interfaces including LAN, USB, GPIO, RS485, RS232 and Audio.

What industrial applications is the PCOPCO AB-MC-IPC-M20-I5 suitable for?

It is ideal for a wide range of AGV-based industrial scenarios, including warehouse material handling AGVs, workshop production line transfer vehicles and automated storage and retrieval systems. Its rich interface options allow it to connect with various AGV peripherals such as sensors and lifting devices, supporting flexible deployment in different factory layouts.

How does the PCOPCO AB-MC-IPC-M20-I5 stand out against similar AGV IPC components?

Compared to competing products, it features an 11th Gen Intel Core i5 processor that delivers sufficient performance for complex AGV scheduling algorithms. It also supports dual operating systems to cater to different factory IT management preferences, and its integrated rich interfaces reduce the need for additional adapter hardware. As a PCOPCO branded product, it has passed strict industrial reliability testing for long-term continuous operation.

How can I source authorized genuine PCOPCO AB-MC-IPC-M20-I5 components?

You can source authorized units through PCOPCO’s official global industrial distribution partners. Before placing an order, it is recommended to confirm the product model, delivery lead time and standard warranty terms to ensure alignment with your project requirements. Authorized sellers will also provide official technical documentation and after-sales support for the component.

What is the PCOPCO AB-MC-IPC-M20-I5?

The PCOPCO AB-MC-IPC-M20-I5 is a purpose-built industrial PC component tailored for Automated Guided Vehicle (AGV) systems. It acts as the core control hub to manage AGV motion, process sensor data and execute assigned material handling tasks. It integrates a full set of industrial-grade interfaces to support various AGV peripheral devices.

What are the official specifications of the PCOPCO AB-MC-IPC-M20-I5?

This unit is equipped with an Intel 11th Gen Core i5 1135G7 processor running at 2.4GHz, and supports both Windows 10 and Linux operating systems. It provides 1 x VGA and 1 x HDMI display outputs with a maximum resolution of 4096*2304@60Hz. It also includes standard industrial interfaces including LAN, USB, GPIO, RS485, RS232 and Audio for connectivity.

What industrial applications is the PCOPCO AB-MC-IPC-M20-I5 suitable for?

This AGV component is ideal for automated material handling operations in manufacturing plants, warehouses and logistics distribution centers. It can support pallet transport, bin handling and in-line production feeding AGV configurations. Its rugged industrial design ensures stable performance in harsh workshop environments.

How does the PCOPCO AB-MC-IPC-M20-I5 stand out from other similar AGV industrial PCs?

Unlike generic industrial PCs, this PCOPCO model is specifically engineered for AGV control, with low power consumption and a compact form factor optimized for mobile vehicle installations. It supports multiple operating systems to align with different factory automation software requirements. Its integrated industrial interfaces reduce the need for extra adapter hardware for most setups.

What should I consider when purchasing the PCOPCO AB-MC-IPC-M20-I5?

Buyers should first verify compatibility between this unit and their existing AGV control software and peripheral hardware. PCOPCO offers a standard industrial product warranty for this model to cover long-term operational support. Customers looking for bulk orders can contact PCOPCO’s authorized regional distributors for tailored pricing and delivery support.

What is the PCOPCO AB-MC-IPC-M20-I5?

This is an industrial-grade IPC specifically tailored as a core control component for industrial AGV systems under the PCOPCO brand. It integrates standard industrial interface configurations to meet the signal transmission and control needs of automated guided vehicles.

What are the key technical specifications of the PCOPCO AB-MC-IPC-M20-I5?

This product is equipped with an Intel 11th Gen Core i5 1135G7 processor running at 2.4GHz, and supports both Windows 10 and Linux operating systems. It features 1 VGA and 1 HDMI display outputs at 4096*2304@60Hz, plus a complete set of industrial interfaces including LAN, USB, GPIO, RS485, RS232 and audio ports.

What industrial scenarios is the PCOPCO AB-MC-IPC-M20-I5 suitable for?

This PCOPCO industrial IPC is ideal for AGV-focused industrial scenarios such as automated warehouse material handling, automotive manufacturing assembly lines and logistics sorting centers. It can stably handle real-time control and data processing tasks for automated guided vehicles in demanding industrial environments.

How does the PCOPCO AB-MC-IPC-M20-I5 compare to similar industrial IPC products for AGVs?

Compared to competing industrial PCs, the PCOPCO AB-MC-IPC-M20-I5 is purpose-built for AGV control applications. It balances strong processor performance with a comprehensive range of industrial interfaces, while supporting dual mainstream operating systems for broader software compatibility.

What procurement support and warranty terms are available for the PCOPCO AB-MC-IPC-M20-I5?

PCOPCO provides a standard 12-month warranty for this industrial IPC component. We offer tracked global shipping services to support procurement for industrial buyers worldwide, and custom volume orders are available to match specific batch requirements.
