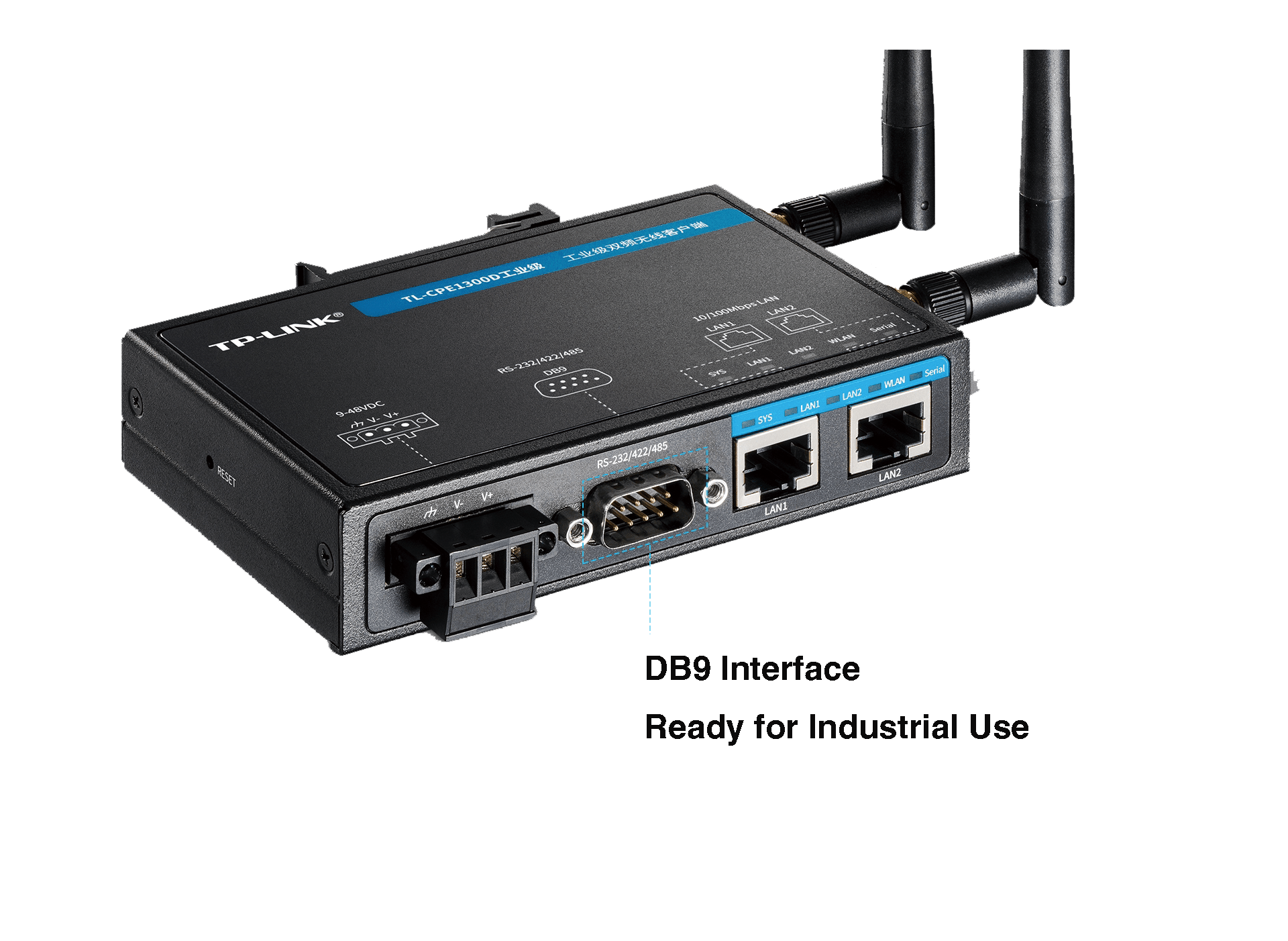

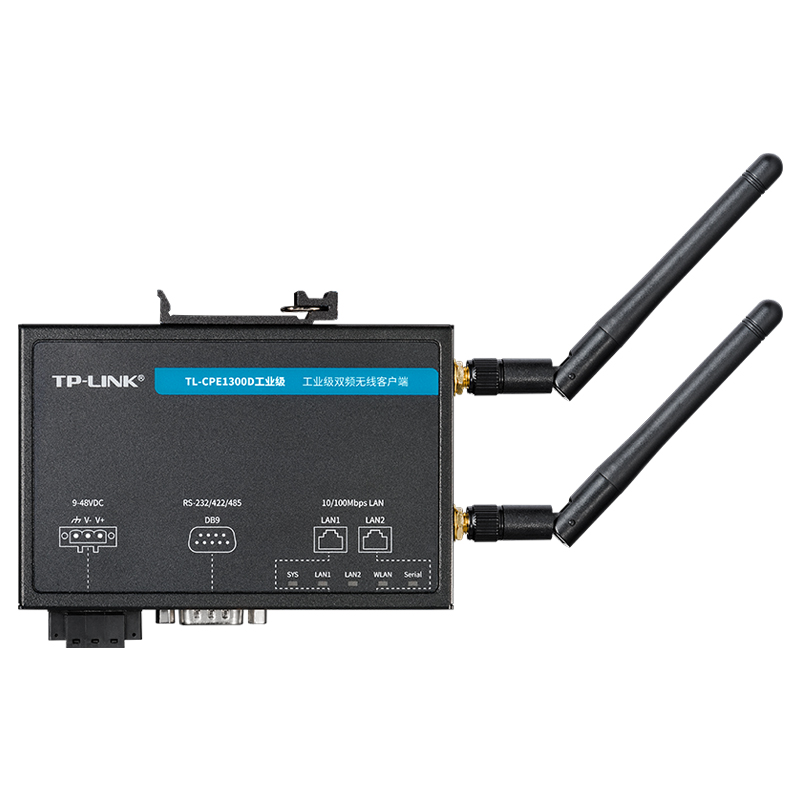

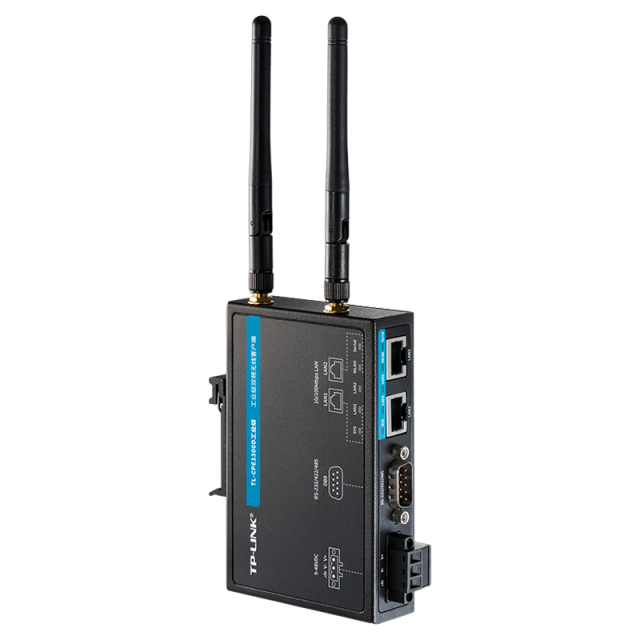

TL-CPE1300D
| Model | TL-CPE1300D |
| Protocol Standard | IEEE 802.11a/b/g/n/ac, IEEE 802.11i, IEEE 802.3u, IEEE 8023ab, IEEE 802.11n |
| Structure | IP30 protection level, supports triple anti-coating protection |
| Product size: 116×76×26 mm (excluding antenna) | |
| Steel housing | |
| Standard DIN rail/wall mounting | |
| DIN rail clips and wall mounts are provided | |
| Wireless | 2.4GHz band: 400Mbps |
| 5GHz band: 867Mbps | |
| Working Frequency Band | 2.4GHz:2412MHz – 2472MHz |
| 5GHz:5180MHz – 5825MHz | |
| *Available channels may vary depending on the regulations of the selected country | |
| Port | 2 10/100Mbps RJ45 ports |
| 1 RS-232/422/485 DB9 serial port | |
| 1 pair of DC terminal power supply interface (V+, V-) | |
| 2 RP-SMA antenna interfaces | |
| 1 grounding port | |
| Antenna | 2 external dual-band detachable 3dBi omnidirectional antennas, incl. in the package |
| Antenna Coverage Angle | 360° |
| Indicator Lights | 1 SYS system indicator light |
| 2 LAN port indicators | |
| 1 WLAN wireless status indicator | |
| 1 Serial port indicator | |
| All types of lights are displayed on both ends of the product | |
| Button | 1 RESET button |
| Power Supply | DC Input: 12/24/48VDC(9 - 60VDC) |
| Current Input: 1.5A(max) | |
| Support reverse connection protection | |
| Max. Power Consumption | 13.4W |
| Management | Web page self-management |
| TP-LINK commercial network cloud platform centralized management | |
| Usage Environment | Working temperature: -40℃ – 75℃ |
| Working humidity: 10% – 90%RH non-condensing | |
| Storage temperature: -40℃ – 85℃ | |
| Storage humidity: 5% – 90%RH non-condensing | |
| Max. Transmit Power | 2.4G: 26dBm |
| 5G: 25dBm | |
| MTBF | Time: 2,192,553 hours |
| Standard: Telcordia SR-332 | |
| Certification | CE, SRRC IEC/EN 61000-4-2(ESD), Level 4 IEC/EN 61000-4-3(RS), Level 4 IEC/EN 61000-4-4(EFT), Level 4 IEC/EN 61000-4-5(Surge), Level 4 IEC/EN 61000-4-6(CS), Level 3 IEC/EN 61000-4-8, Level 5 IEC/EN 61000-4-9, Level 5 IEC/EN 61000-4-10, Level 5 |
| Software Specifications | |
| Wireless Capabilities | Working mode: Client, Client-Router (access to wireless network) |
| Quick Setup Wizard: Support | |
| Enhanced roaming: Support | |
| Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK | |
| Transmit power setting: Support 1dBm linear adjustment | |
| Serial port function: Support TCP Server, TCP Client, UDP mode | |
| Hotspot function: Support | |
| Wireless Redundancy: Support | |
| System Management | Equipment management: Full Chinese WEB management |
| System log: Support | |
| Restore factory settings: Support | |
| Backup configuration: Support | |
| Import configuration: Support | |
| Software upgrade: Support | |
| Ping watchdog: Support | |
| Overseas channel adaptation: Support | |
| Client-Router Network | DHCP server: Support |
| Static address allocation: Support | |
| NAT: Support | |
| Static routing: Support | |
Frequently Asked Questions
What is the PCOPCO TL-CPE1300D Industrial AGV component?
The PCOPCO TL-CPE1300D is a purpose-built network module for industrial automated guided vehicles. It facilitates stable wireless connectivity to support AGV navigation, fleet scheduling and real-time equipment status updates. This component is designed specifically for harsh industrial operating conditions.
What key technical specifications does the PCOPCO TL-CPE1300D have?
The PCOPCO TL-CPE1300D features a working temperature range of -40°C to 75°C, making it suitable for extreme industrial environments. It complies with IEC/EN 61000-4 industrial protection standards and supports 2.4G and 5G AC1300 bandwidth. It also comes with a DB9 industrial port for reliable wired connection integration.
In which industrial scenarios can the PCOPCO TL-CPE1300D be used?
The PCOPCO TL-CPE1300D is ideal for automated guided vehicle applications in factory warehouses, logistics hubs and heavy manufacturing workshops. Its wide operating temperature and industrial protection rating make it suitable for environments with extreme temperature swings or electromagnetic interference. It supports seamless integration with most standard industrial AGV fleet management systems.
How does the PCOPCO TL-CPE1300D compare to consumer-grade wireless modules for AGVs?
Unlike consumer-grade wireless devices, the PCOPCO TL-CPE1300D is built with industrial-grade durability and compliance standards. It offers a wider operating temperature range and stronger electromagnetic interference resistance to withstand tough factory environments. It also delivers dual-band AC1300 bandwidth to support high-volume data transmission for AGV operations.
What should I know before purchasing the PCOPCO TL-CPE1300D in bulk?
When placing bulk orders for the PCOPCO TL-CPE1300D, you can inquire about official supply chain support and lead times from authorized PCOPCO distributors. It is recommended to confirm compatibility with your existing AGV hardware and software systems prior to ordering. You may also request product samples for field testing before finalizing your purchase.
