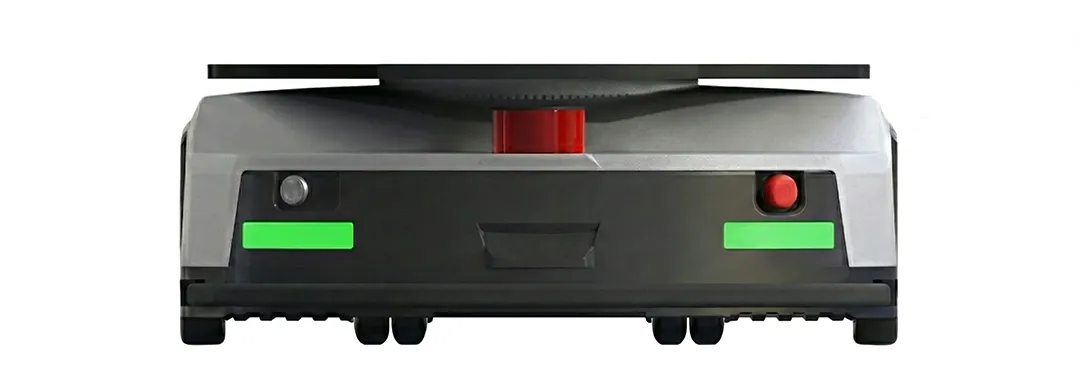

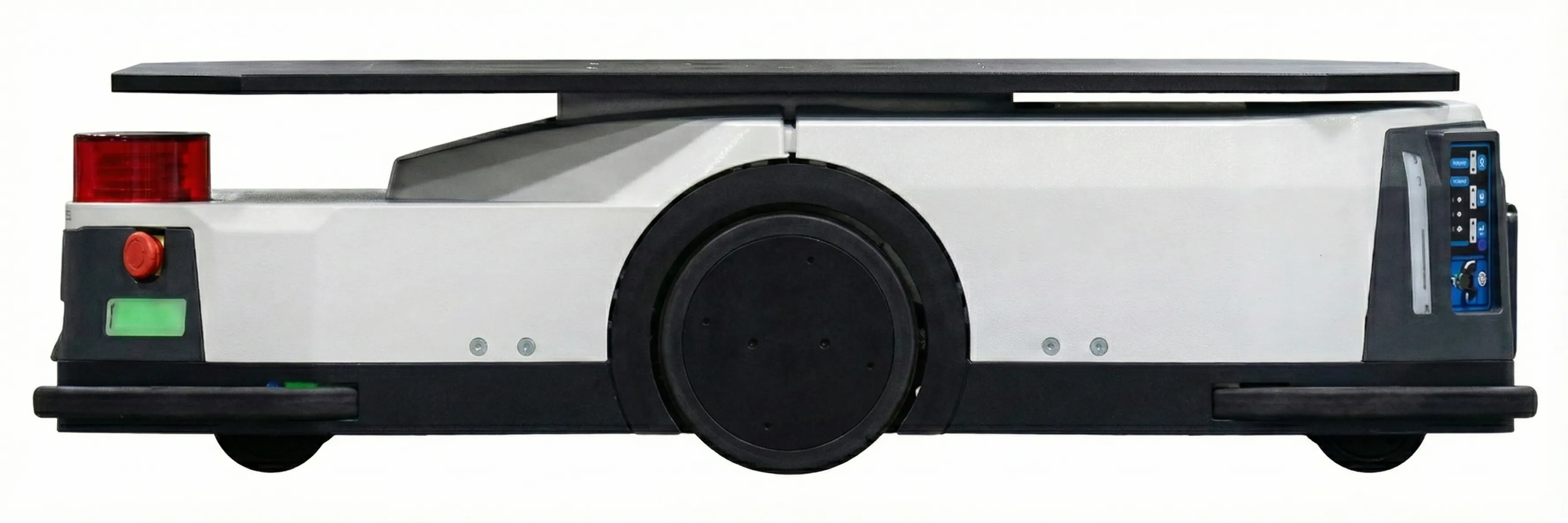

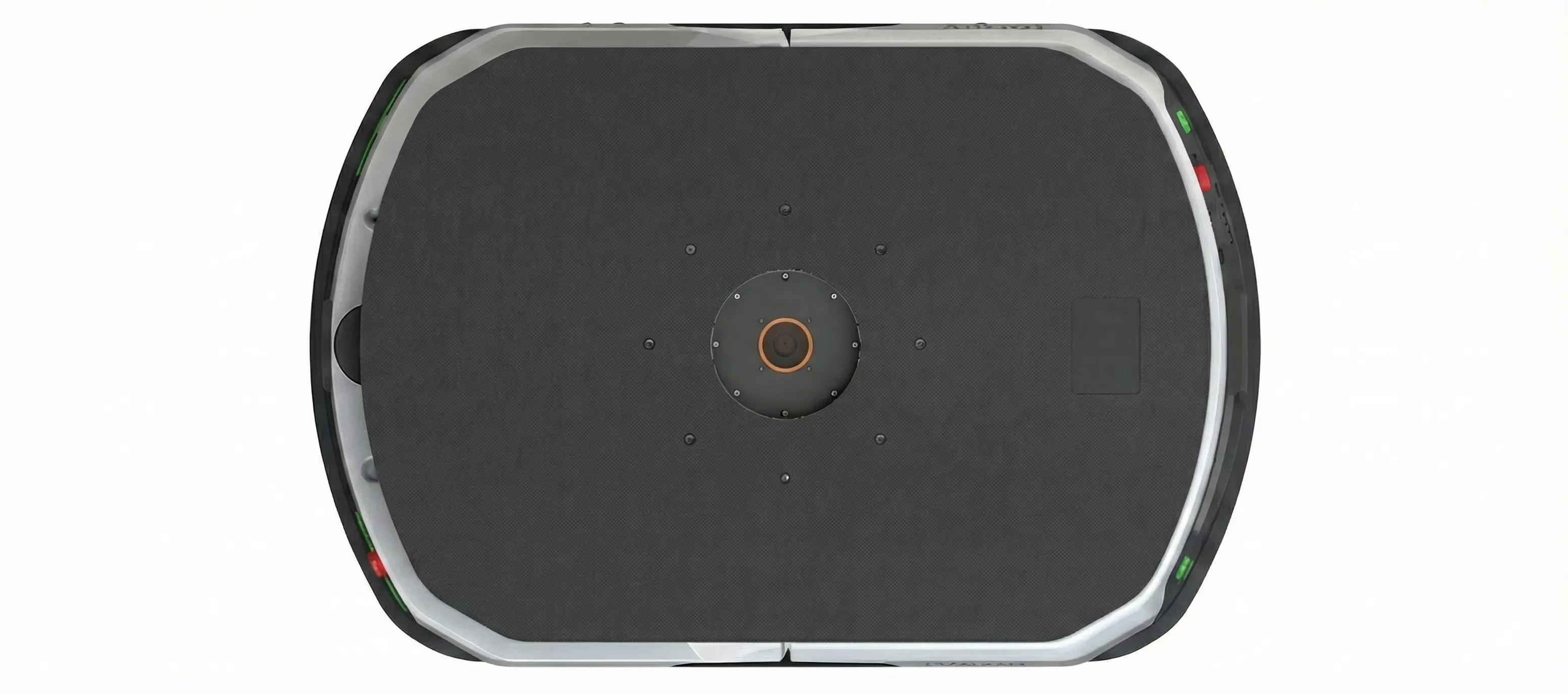

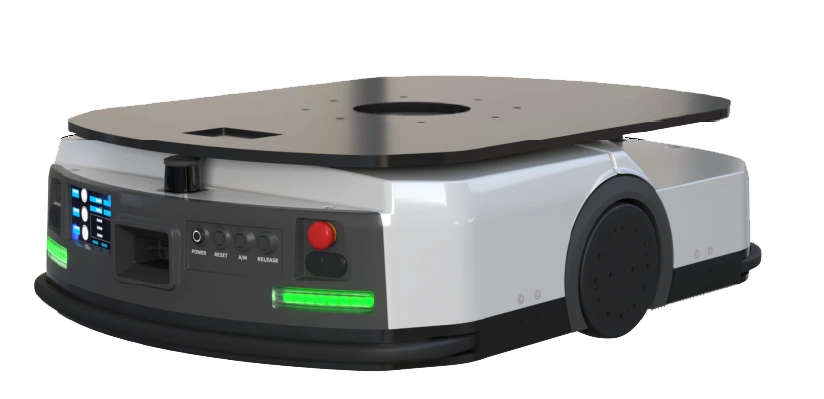

Platform Lifter 600kg

A versatile, autonomous lifting system capable of texture recognition and intelligent power management.

Platform Lifter 600kg
Platform Lifter 600kg
Platform Lifter 600kg
Platform Lifter 600kg
Platform Lifter 600kg
Platform Lifter 600kg
Platform Lifter 600kg
Platform Lifter 600kg

Precision Motion Control

Servo System

Agile Maneuvering

Differential Wheels

Reliable Drive Systems

Kinco/MOONS Drive

Accurate Positioning

Encoder Included

Long-Lasting Power

7-8h LFP Battery Life

Optimized Lifting

60mm Lifting Capability

ModelAB-FLB-PL06
Feature
Drive ModeDifferential drive of two wheels
Dimensions950 × 650 × 250 mm
Rotation Diameter963 mm
Self-Weight130 kg
Rated Load600 kg
Chassis Ground Clearance25 mm
Lifting Panel Size850×600 mm
Lifting Height60 mm
Motion
Rated Operating Speed (Rated Load/No Load)1.5 m/s; 1.9 m/s
Acceleration (Rated Load/No Load)0.3 m/s²; 0.6 m/s²
Rotation Speed (Full Load/No Load)100°/s; 200°/s
Battery
Battery TypeLithium iron phosphate
Capacity/Rated Voltage24 Ah/48V
Charge-Discharge Cycle Times1,500 times
Rated Working Condition Endurance Time8 h
Charging Time After Complete Discharge≤1.5 h
Communication ProtocolCAN/RS485
Other Parameters
Human-Computer Interaction ModeTouch screen
Navigation ModeLaser SLAM or 2D code
Front Laser Obstacle Avoidance (Quantity/Installation Height)1 piece/201.5 mm
Opening Angle250°
3d Vision Obstacle AvoidanceOptional
Rear UltrasonicOptional
Emergency Stop Buttons2 pieces (front and rear each 1)
Contact ProtectionPiezoelectric edge switch
Acoustic-Optic AlarmStandard
Chassis Damping ModeTwo-stage floating chassis
Climbing Capacity≤5%/2.8°
Step Capacity≤5 mm
Gutter Crossing Capacity≤30 mm
SignalSupports dual-band Wi-Fi (2.4 GHz and 5 GHz), with wireless signal strength ≥ -70 dBm.
HumidityRelative humidity 10%–90% without condensation
TemperatureWorking area: -10°C–45°C
Charging area: 0°C–45°C




Frequently Asked Questions

What is the PCOPCO Platform Lifter 600kg?

The PCOPCO Platform Lifter 600kg is a dedicated industrial AGV component designed for automated lifting and positioning of materials. It serves as a core lifting unit for platform-style automated guided vehicles, supporting seamless integration into material handling workflows. This component is built to meet industrial-grade durability standards for long-term operational use.

What technical specifications does the PCOPCO Platform Lifter 600kg have?

This PCOPCO Platform Lifter 600kg has a rated load capacity of 600kg and a maximum lifting height of 60mm. It is equipped with a 48 V 24 Ah LFP battery and supports BMS communication via RS485 or CAN interfaces. These specs are optimized for reliable performance in industrial AGV systems.

What industrial applications is the PCOPCO Platform Lifter 600kg suitable for?

This PCOPCO Platform Lifter 600kg is ideal for light-to-medium material handling in factories, warehouses and distribution centers. It can lift and position pallets, bins or small workpieces during automated assembly or inventory sorting tasks. Its compact design also works well in tight workspace environments common in manufacturing facilities.

How does the PCOPCO Platform Lifter 600kg compare to similar AGV lifting components?

Compared to generic competing AGV lifting components, this PCOPCO unit features a high-quality LFP battery for stable, long-lasting power. It also offers flexible BMS communication options, simplifying integration with various AGV control systems. Its 600kg rated load balances performance and cost for most mid-tier material handling needs.

What should I prepare before purchasing the PCOPCO Platform Lifter 600kg?

Before purchasing this PCOPCO Platform Lifter 600kg, first confirm its compatibility with your existing AGV control system, particularly matching the required BMS communication protocol. You should also verify that its load capacity and lifting height align with your specific material handling workflow requirements. For bulk orders, you can reach out to authorized PCOPCO distributors for pricing and after-sales support.

What exactly is the PCOPCO Platform Lifter 600kg?

This unit is a dedicated Platform Style AGV component under the PCOPCO brand, engineered to support automated material transport workflows. It serves as a core lifting and positioning part for compatible automated guided vehicle setups in industrial facilities.

What are the core technical specifications of the PCOPCO Platform Lifter 600kg?

The PCOPCO Platform Lifter 600kg has a rated load capacity of 600kg and a maximum lifting height of 60mm. It is equipped with a 48 V 24 Ah LFP battery and supports BMS communication via RS485 or CAN interfaces. These specs are calibrated for standard medium-duty industrial material handling needs.

What industrial applications is the PCOPCO Platform Lifter 600kg suitable for?

This PCOPCO lifting component is ideal for medium-load material handling in factories, warehouses and automotive assembly lines. It excels at transporting palletized goods and work-in-progress components between production stations. Its compact design also makes it suitable for tight-space industrial work areas requiring precise positioning.

How does the PCOPCO Platform Lifter 600kg compare to similar AGV lifting components on the market?

Compared to many competing AGV lifting components, the PCOPCO Platform Lifter 600kg offers reliable LFP battery performance and flexible BMS communication options. It balances rated load and lifting height to fit most common medium-duty industrial tasks, avoiding overengineered features that add unnecessary cost. This makes it a practical, cost-effective choice for standard material handling setups.

What should I note when purchasing the PCOPCO Platform Lifter 600kg?

When procuring the PCOPCO Platform Lifter 600kg, first confirm compatibility with your existing AGV control systems to match the required BMS communication protocol (either RS485 or CAN). You can also reach out to authorized PCOPCO distributors to inquire about lead times, warranty terms and integration support. This ensures a smooth procurement and installation process for your facility.

What is the PCOPCO Platform Lifter 600kg AGV component?

This is a dedicated platform-style AGV component from PCOPCO, designed to integrate with automated guided vehicle systems. It provides precise low-height lifting functionality for industrial material handling tasks.

What are the key technical parameters of the PCOPCO Platform Lifter 600kg?

The PCOPCO Platform Lifter 600kg has a rated load capacity of 600kg and a maximum lifting height of 60mm. It uses a 48 V 24 Ah LFP battery and supports BMS communication via RS485 or CAN interfaces.

What industrial applications is the PCOPCO Platform Lifter 600kg suitable for?

This component is ideal for low-height material handling in manufacturing workshops, warehouses and distribution centers. It enables automated lifting and transfer of pallets or industrial bins to streamline factory logistics.

How does the PCOPCO Platform Lifter 600kg stack up against similar AGV lifting components?

Compared to competing platform AGV lifting parts, the PCOPCO model offers reliable LFP battery performance with longer cycle life and safer operation. It also provides flexible BMS communication options to fit most standard industrial AGV control setups.

What should I know before purchasing the PCOPCO Platform Lifter 600kg AGV component?

Before procuring this component, confirm that it matches your AGV chassis dimensions and required communication protocol, either RS485 or CAN. You should also verify compatibility with your facility’s power setup for the 48 V 24 Ah LFP battery.

What is the PCOPCO Platform Lifter 600kg?

The PCOPCO Platform Lifter 600kg is a dedicated core component for platform-style industrial automated guided vehicles. It provides reliable lifting support for material transfer and automated production workflows, and falls under the category of industrial AGV components.

What key technical parameters does the PCOPCO Platform Lifter 600kg have?

This unit has a rated load capacity of 600kg and a maximum lifting height of 60mm. It is equipped with a 48 V 24 Ah LFP battery, and supports BMS communication via either RS485 or CAN interfaces. These parameters fit most medium-duty industrial AGV applications.

What industrial scenarios is the PCOPCO Platform Lifter 600kg applicable to?

It is ideal for indoor material transfer in manufacturing workshops, automated production line station docking, and short-distance cargo handling in small-to-medium warehouses. Its stable lifting performance supports most medium-duty industrial automated logistics scenarios.

What are the advantages of the PCOPCO Platform Lifter 600kg over competing products?

The PCOPCO Platform Lifter 600kg uses a lithium iron phosphate battery, which offers longer cycle life and better safety performance than lead-acid alternatives. It also offers flexible BMS communication options to fit different AGV control systems. The product is built with industrial-grade materials for long-term stability in factory environments.

How can I source the PCOPCO Platform Lifter 600kg for my factory’s AGV project?

You can contact authorized PCOPCO distributors worldwide to inquire about inventory, pricing and delivery lead times. You may also share your AGV system’s specific requirements for tailored integration support. Sample testing is available to verify performance before formal procurement.
